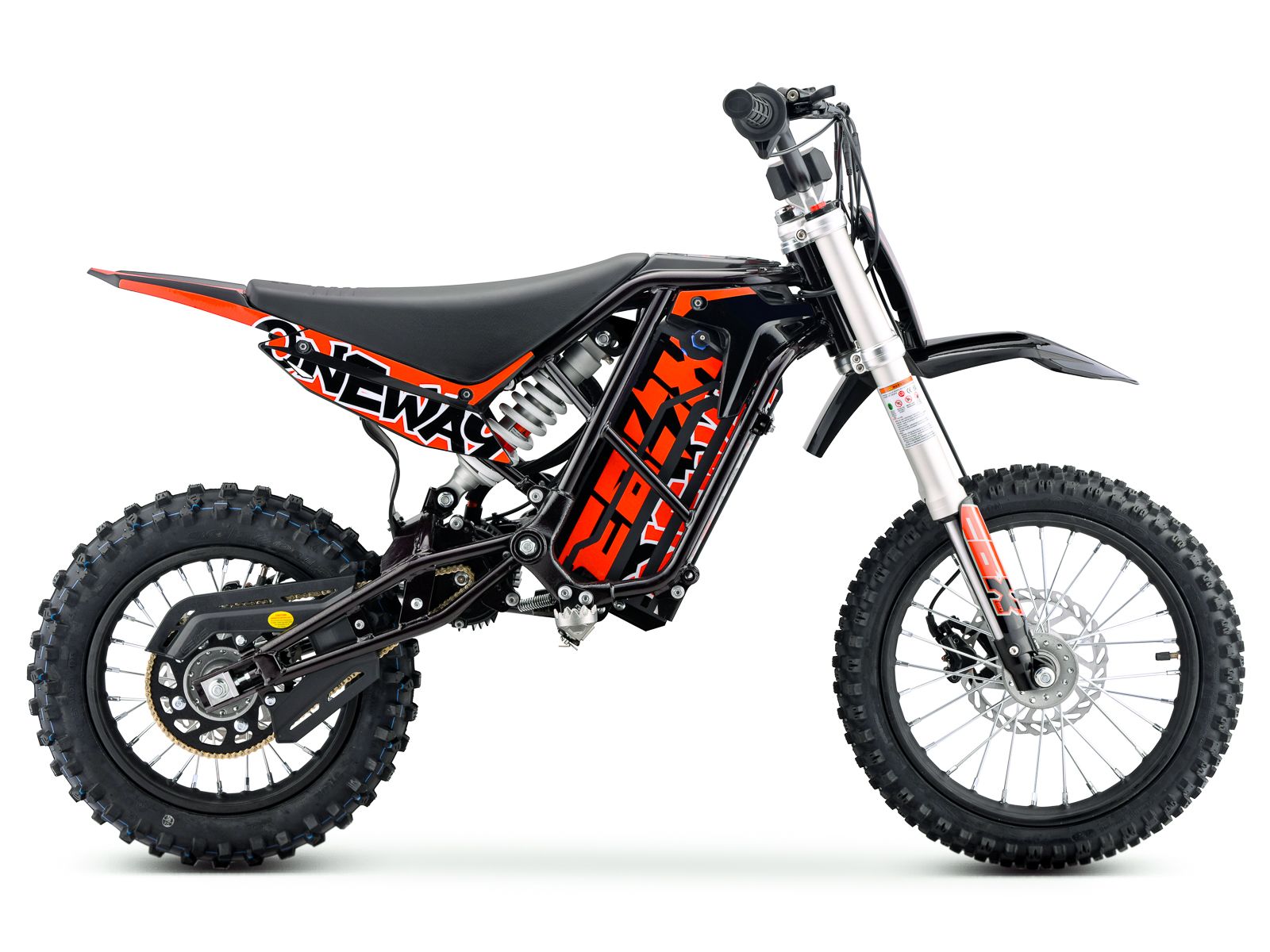

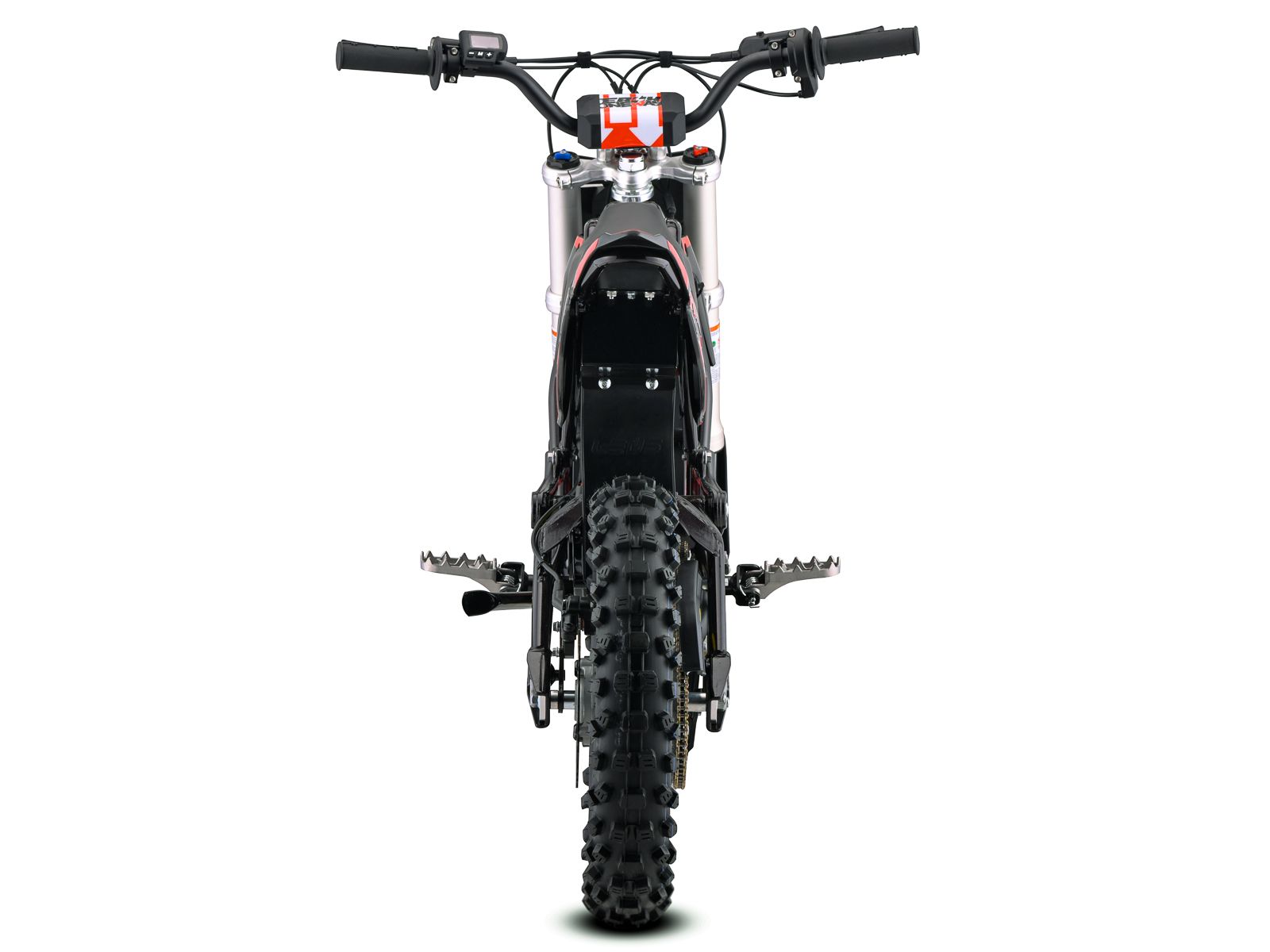

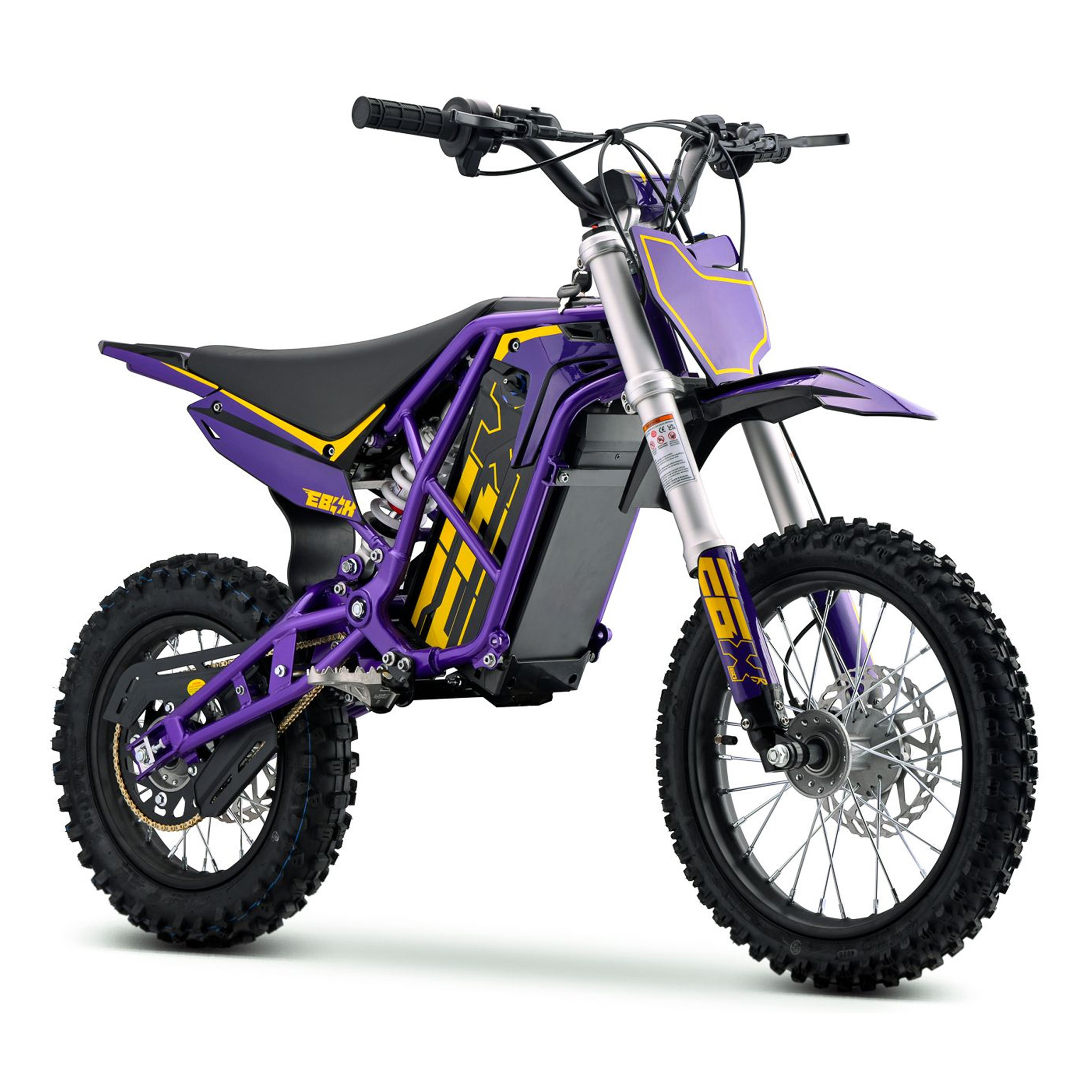

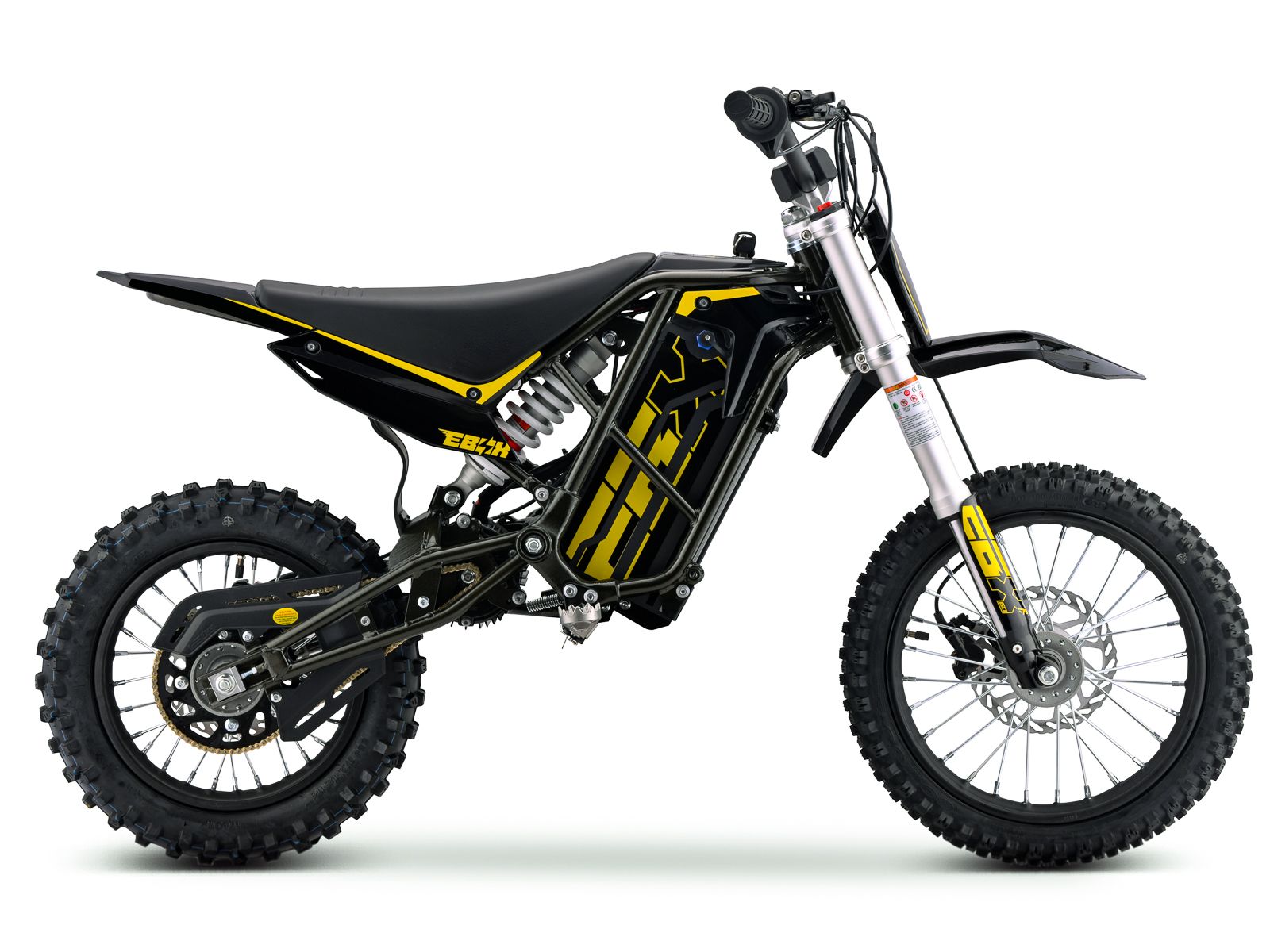

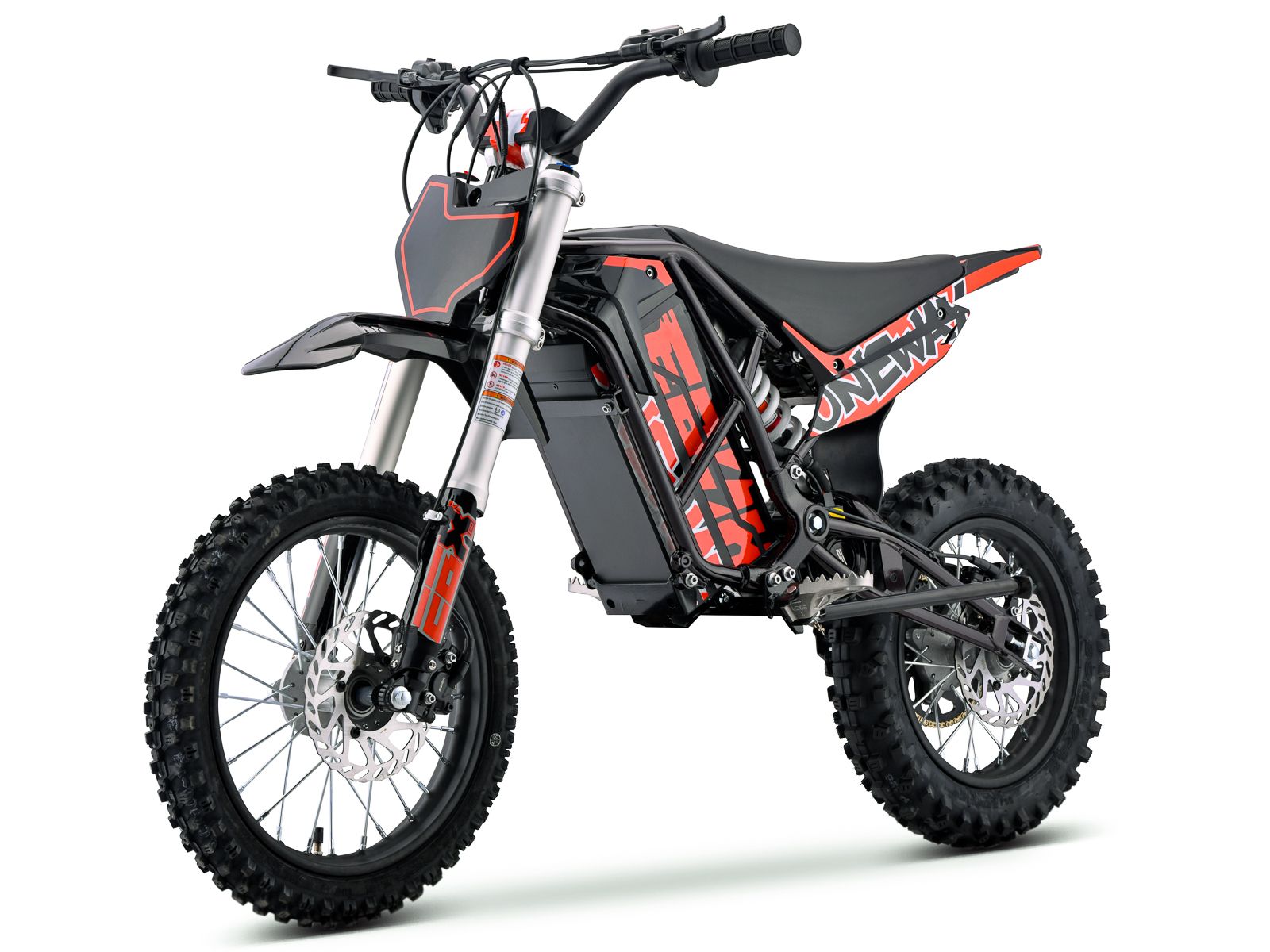

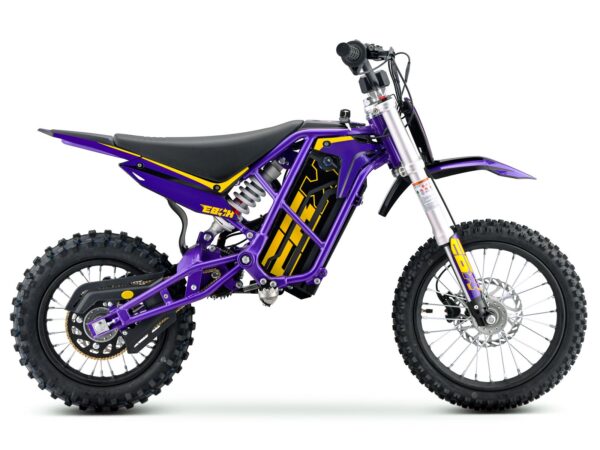

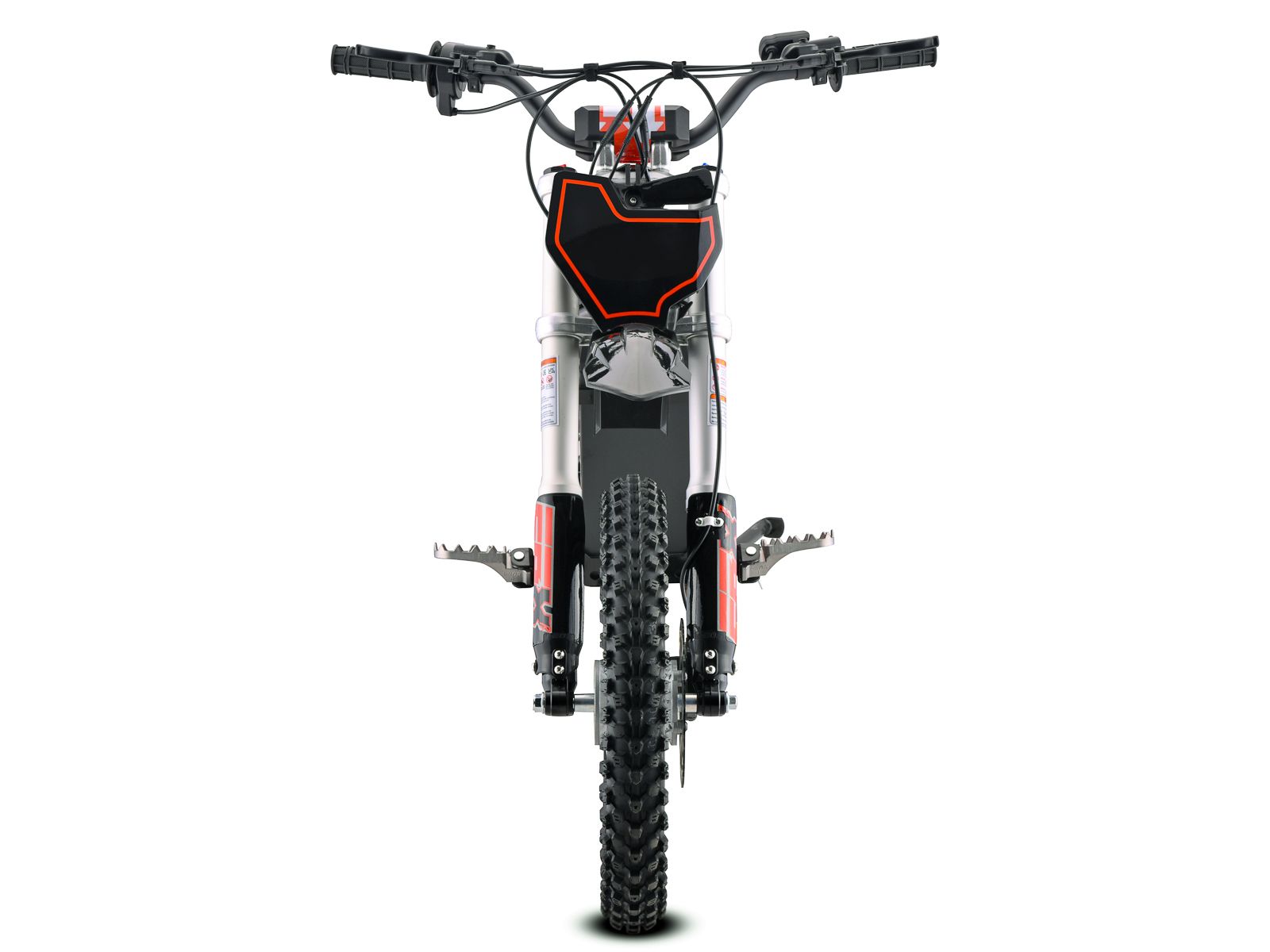

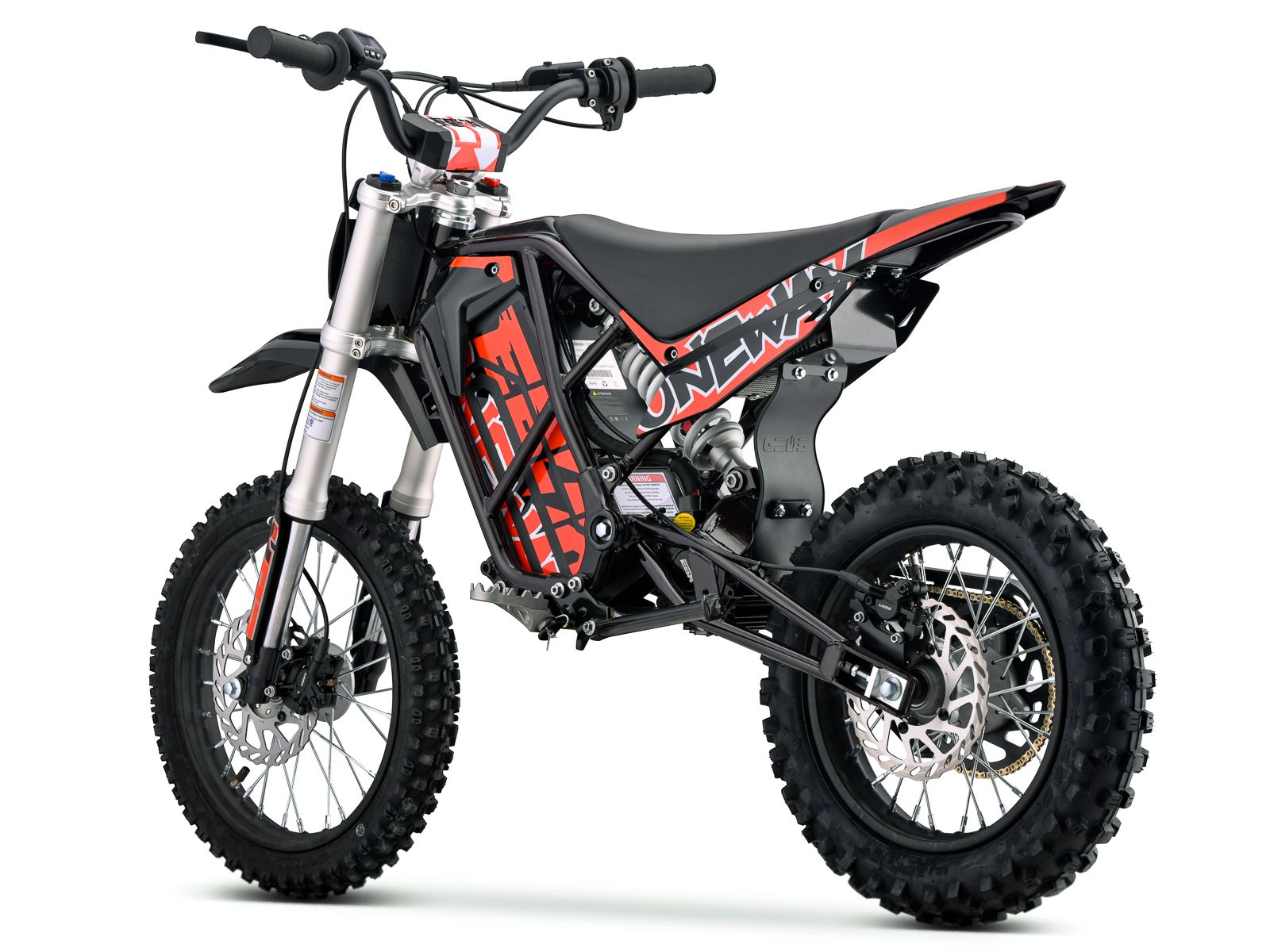

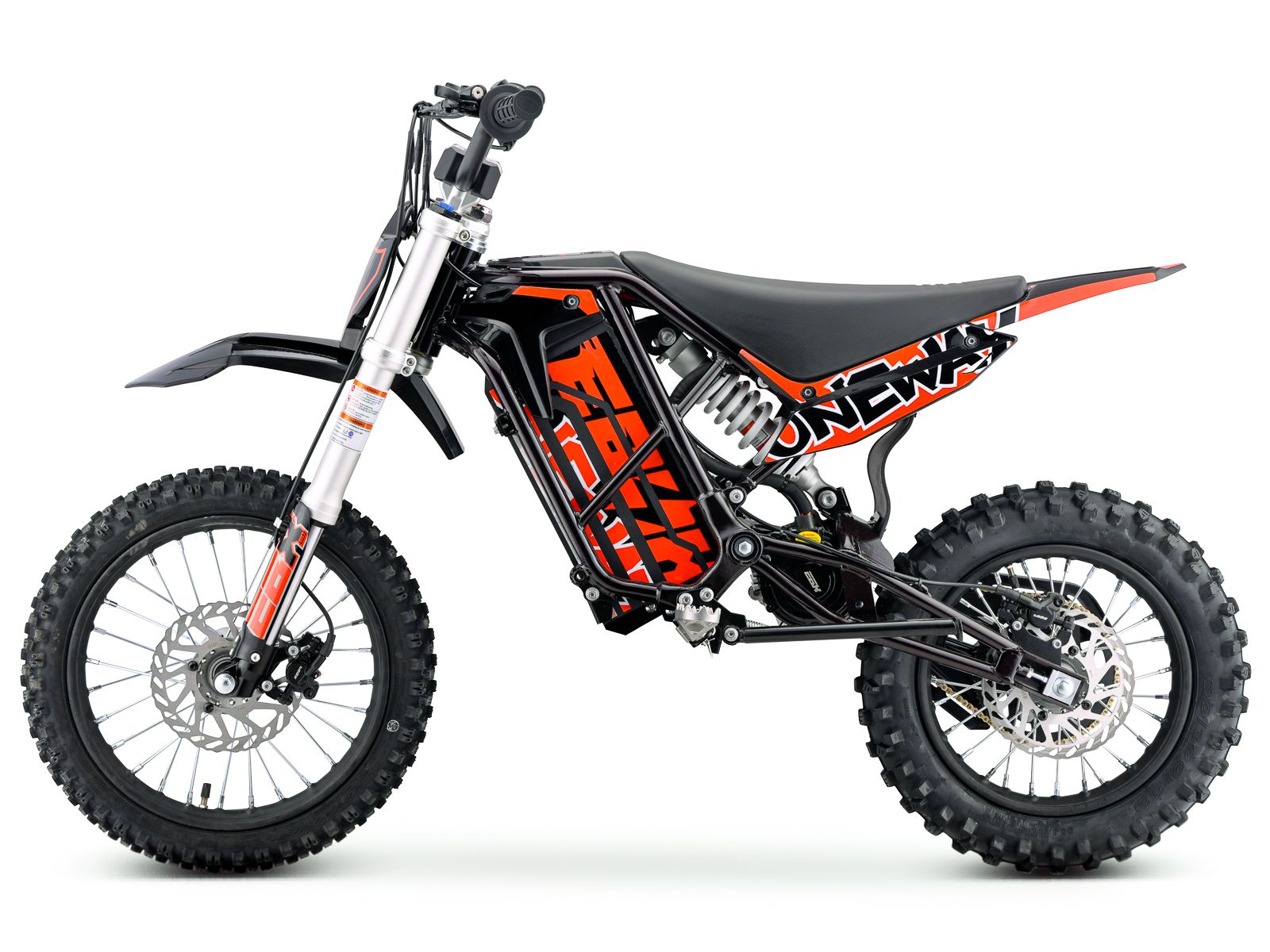

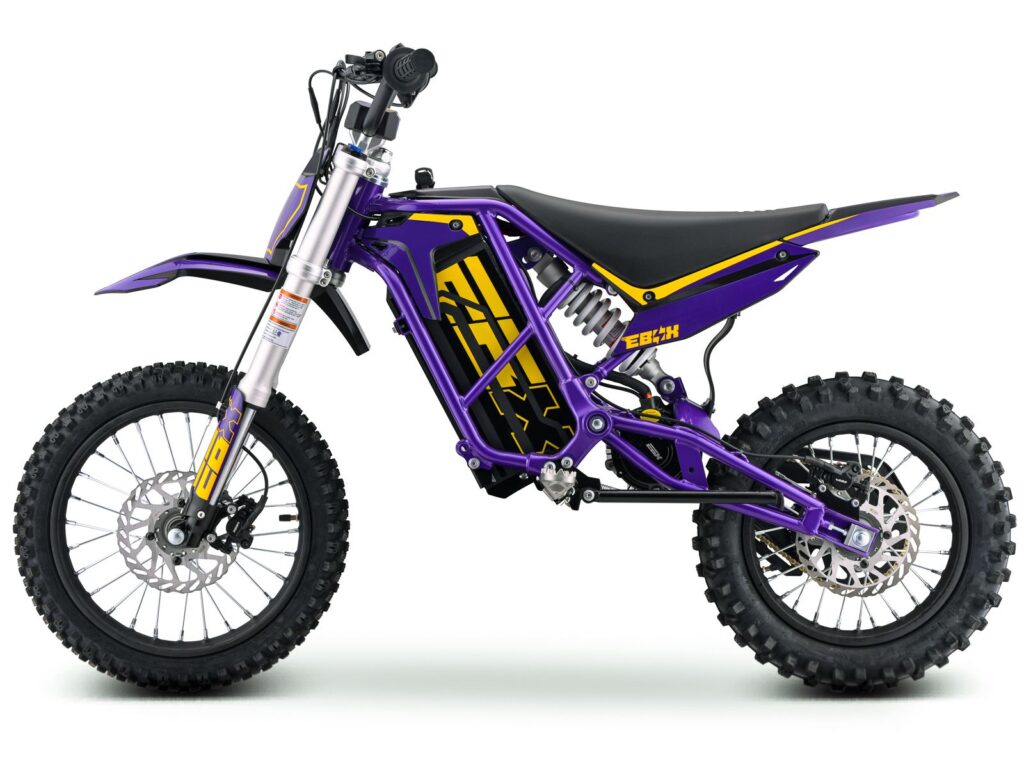

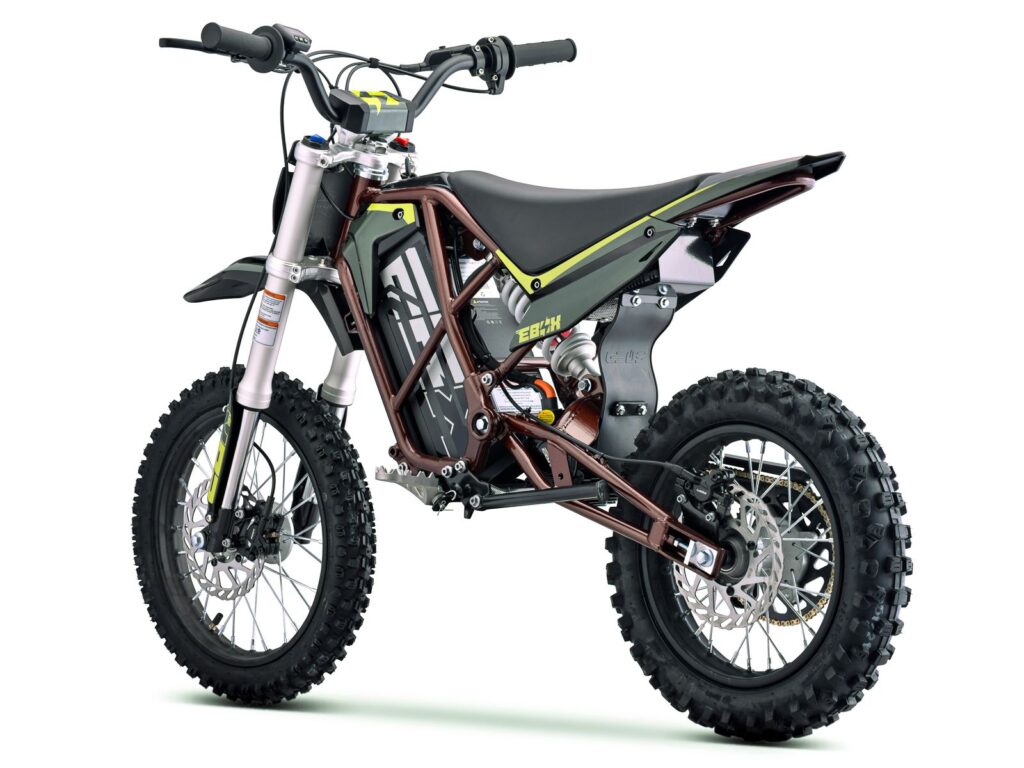

The BOX V3 60R delivers extreme electric minibike performance in a compact, throw-anywhere package. Powered by the EBX powertrain, it pairs bigger batteries with a Fardriver 80A controller and a high-output PMSM encoder motor producing up to 6.3 kW. A precision encoder with temperature feedback replaces hall sensors for sharper efficiency and reliability. The full-colour TFT display features three speed modes and built-in diagnostics to keep riders fully dialled in. With peak speeds up to 55 mph, upgraded tyres, bold colourways, and a 1-year / 1000-mile powertrain warranty, the BOX V3 60R is built to rip, ride, and glide.
E-bikes with motors over 250W or speeds above 25 km/h are for use on private land only, with the landowner’s permission.
| Model | EBOX V3 60R |
| Frame Type | V3 Double Cradle |
| Front Wheel Size | 14″ alloy rim |
| Rear Wheel Size | 12″ alloy rim |
| Front Brake | Hydraulic Disc, 180 mm rotor, e-moto brakes |
| Rear Brake | Hydraulic Disc, 180 mm rotor, e-moto brakes |
| Front Tyre | 60/100-14 Dirt |
| Rear Tyre | 80/100-12 Dirt |
| Chain | 219H 120L, high-tensile strength, durable for high torque output |
| Gearing | Front 10T / Rear 70T, optimised for acceleration and top speed |
| Max Load | 85 kg (187 lbs) |
| Fork Type | USD Front Forks, stiffer and longer for precision off-road handling with 150mm travel |
| Shock Type | DNM 270 mm Mono-Shock, adjustable preload & rebound damping, nitrogen-filled for consistent performance with 150mm travel |
| Handlebar | High-rise 6061 T6 Race Bar with dropper footpeg bar, ergonomic and responsive control |
| Battery | New 60v 26 Ah battery with BMS 18,600 Cells potted in steel case with QS8 connector and air breaker switch |
| Charger | AC 100-240V, Output: 67.2V, 3A |
| Motor | 60V EBX PMSM motor with temp feedback and encoder |
| Controller | 80 Amp fardriver controller |
| Display | TFT odometer display with 3 speed modes and fault code analysis software |
| Wheelbase | 980 mm for agile handling and stability |
| Ground Clearance | 275 mm for obstacles and off-road versatility |
| Seat Height | 65 cm, suitable for teen and adult riders - EBOX fat seat |
| Weight | 65 kg |
| Frame construction | V3 wide frame (190mm) large capacity battery, race inspired revised geometry. Increased fork travel, increased pre-load and heavier oil. Standard Footpeg |
| Warranty | EBX 1 year/1000 miles (whichever comes first) powertrain warranty. 6 month parts warranty. |
